RHP SERIES

RHP20

The RHP20 is a rotary head from the RHP Series for pile rigs, built for high torque in continuous operation. Built for large rigs, large diameters and deep boreholes.

RHP20 drilling head
RHP20

Available in DTH version

OVERVIEW
WEIGHT2300 – 2600 kg
TRACTION500 kN
TORQUEup to 217 kNm
ROTATIONup to 68 min⁻¹
TECHNICAL SPECIFICATIONS

Drive shafts

Flange connection

Other connections on request

Options

Hydraulic or electric control
Mounting plates
Flushing heads 4“ & 5“
Pressure measuring device
Cardanic joint
Shock absorber
Speed sensor

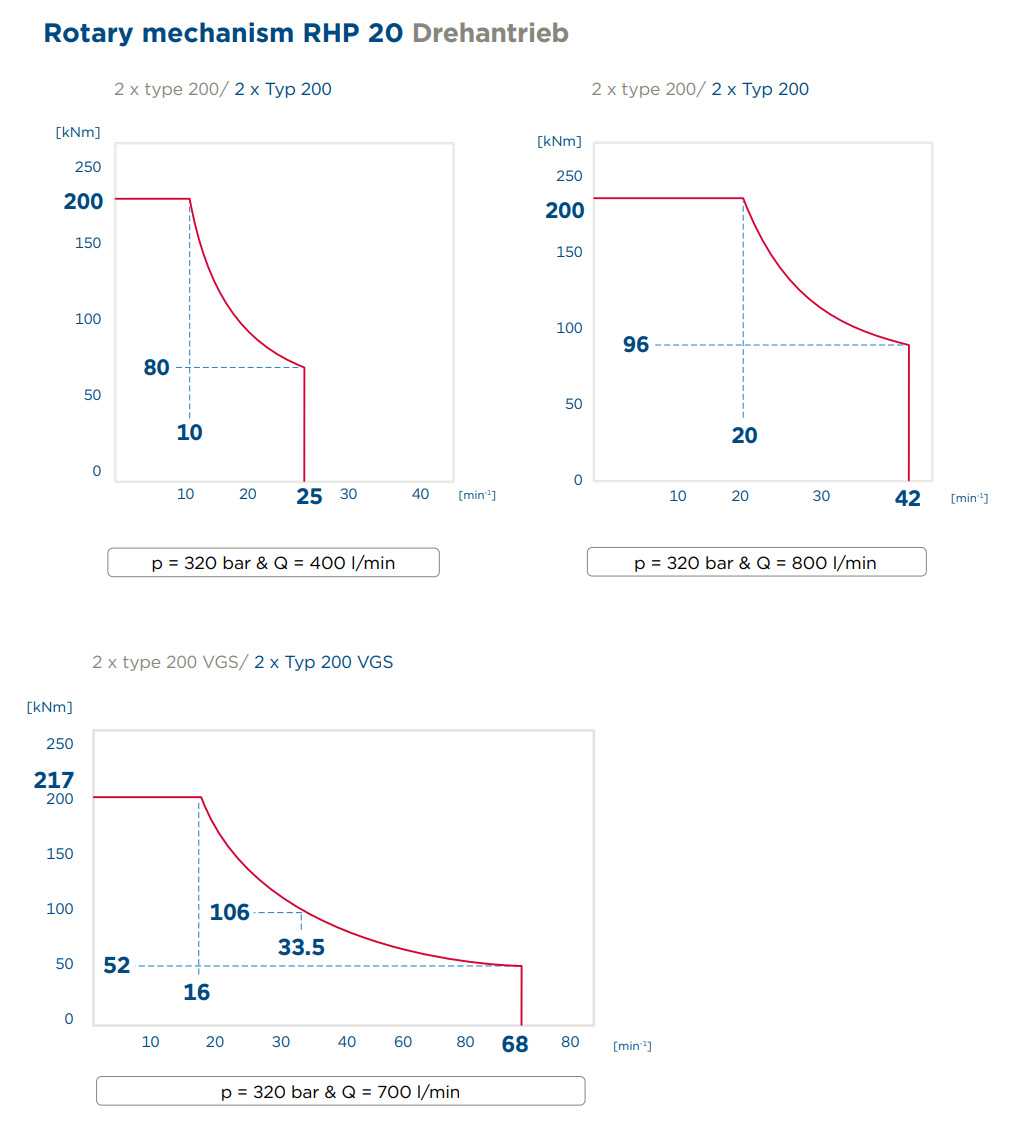

PERFORMANCE DIAGRAM
PERFORMANCE DIAGRAM RHP20
DIMENSIONAL DRAWING
DIMENSIONAL DRAWING RHP20
ALL DIMENSIONS IN MM
IMPRESSIONS FROM THE FIELD
EURODRILL RHP20
RHP20
EURODRILL RHP20
RHP20
