X-SERIES
RH12X
The RH12X is a hydraulic drilling head from the X-Series. Interchangeable attachments convert it between rotary head and drifter. This construction method is suitable for confined spaces and lightweight carrier vehicles.
RH12X
Strong & light
OVERVIEW
| WEIGHT | 205 – 310 kg |
| TRACTION | 130 kN |
| TORQUE | up to 12.2 kNm |
| ROTATION | up to 124 min⁻¹ |
| PERCUSSION FREQUENCY | up to 2800 min⁻¹ |
TECHNICAL SPECIFICATIONS
Standard motors · Rotary mechanism RH12X
| Motor type | 95 | 95 | 96 | 96 | 97 | 97 |
|---|---|---|---|---|---|---|
| GEAR | 1 | 2 | 1 | 2 | 1 | 2 |
| TORQUE · kNm | 7,8 | 3,9 | 9,8 | 4,9 | 12,2 | 6,1 |
| ROTATION · min⁻¹ | 62 | 124 | 49 | 98 | 39 | 78 |
| p = 250 bar · Q = 120 l/min | ||||||
Option percussion unit
| Type | 4 |
|---|---|
| OPERATING PRESSURE · bar | 160 – 200 |
| OIL CAPACITY · l/min | 80 – 95 |
| SINGLE BLOW ENERGY · Nm | … 550 |
| NO. OF BLOWS · min⁻¹ | … 2800 |
Shank adapters
| R32, 38, 51, T45 & T76 |
| H64 & C64 LH/RH |
Other shank adapters on request
Drive shafts
| Flange connection |
Other connections on request
Options
| Hydraulic, electric or manual shifting |
| Mounting plates |
| Flushing head 2“ & 3“ |
| Shock Absorber |
| Floating spindle |
| Percussion unit type 4 |

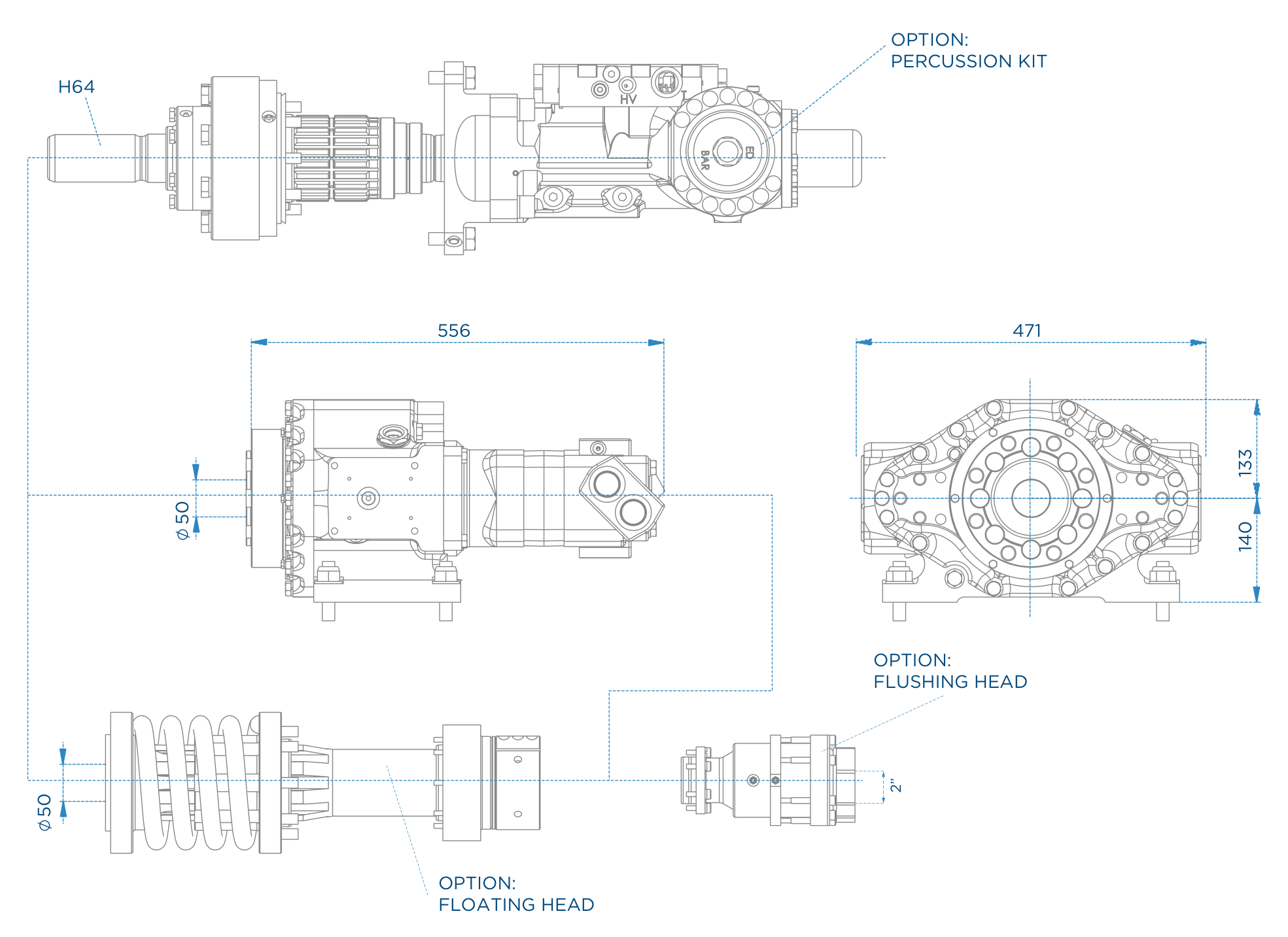

DIMENSIONAL DRAWING
