X-SERIE · SIZE HEAVY
RH35X
The RH35X is a hydraulic drilling head from the X-Series. Interchangeable attachment kits allow it to be converted between a rotary head and a hammer drill. This model is designed for high torque and large drilling diameters.
RH35X
New Model
OVERVIEW
| WEIGHT | 365 – 715 kg |
| TRACTION | 220/350 kN |
| TORQUE | up to 35 kNm |
| ROTATION | up to 118 min⁻¹ |
| PERCUSSION FREQUENCY | up to 2500 min⁻¹ |
TECHNICAL SPECIFICATIONS

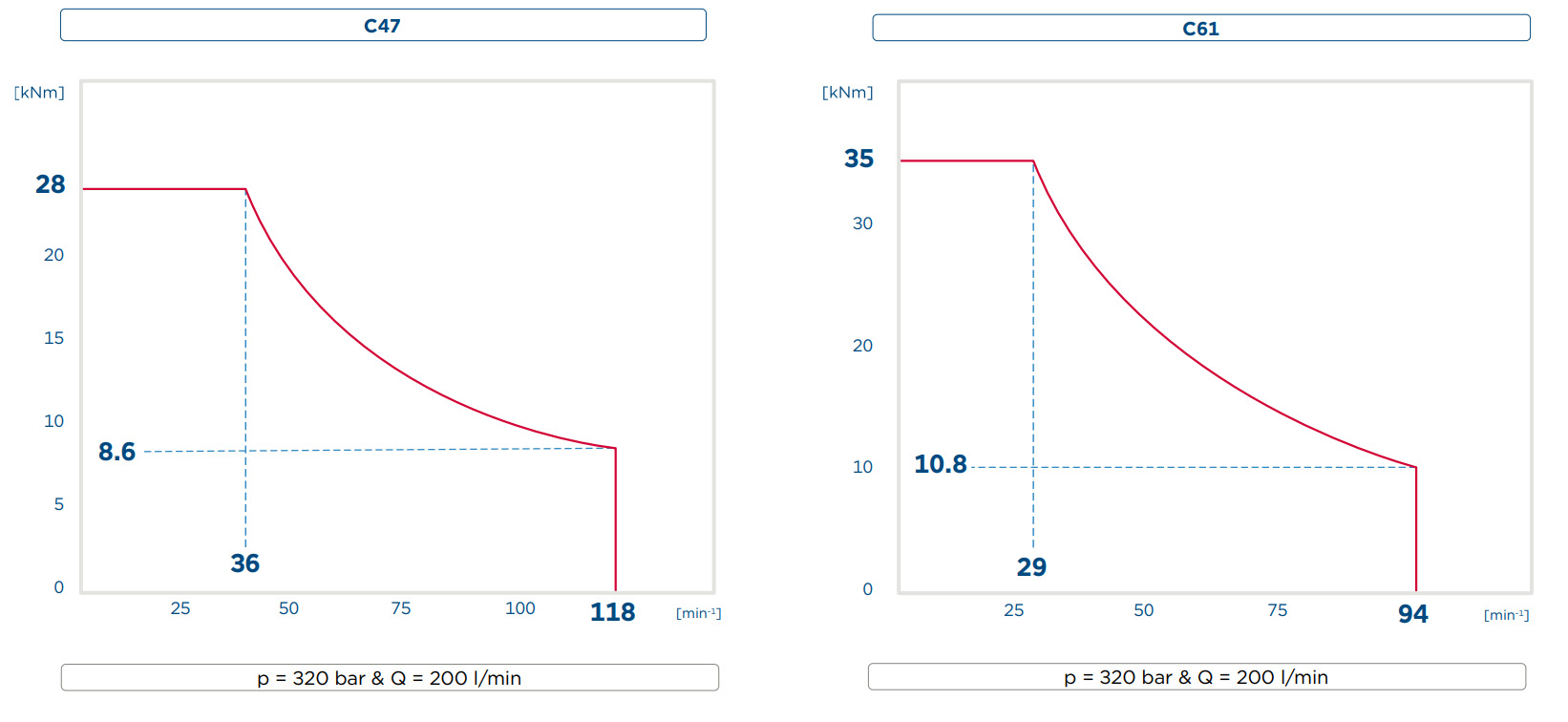

Variable C-Motors · Rotary mechanism RH35X
Option percussion unit
| Type | 8 |
|---|---|
| OPERATING PRESSURE · bar | 160 – 200 |
| OIL CAPACITY · l/min | 110 – 125 |
| SINGLE BLOW ENERGY · Nm | … 950 |
| NO. OF BLOWS · min⁻¹ | … 2500 |
Shank adapters
| H112, H114 & C112 LH / RH |
Other shank adapters on request
Options
| Hydraulic or electric control |
| Mounting plates |
| Flushing heads 2“, 3“ & 4“ |
| Shock absorber |
| Floating spindle |
| ID 172 mm |
| Percussion unit type 8 |
DIMENSIONAL DRAWING
IMPRESSIONS FROM THE FIELD
