X-SERIES
RH15X
The RH15X is a hydraulic drilling head from the X-Series. Interchangeable attachments convert it between rotary head and drifter. This construction method is suitable for confined spaces and lightweight carrier vehicles.
RH15X
Up to 1000 min-1
OVERVIEW
| WEIGHT | 350 – 510 kg |
| TRACTION | 130 kN |
| TORQUE | up to 15,1 kNm |
| ROTATION | up to 1000 min⁻¹ |
| PERCUSSION FREQUENCY | up to 2800 min⁻¹ |
TECHNICAL SPECIFICATIONS

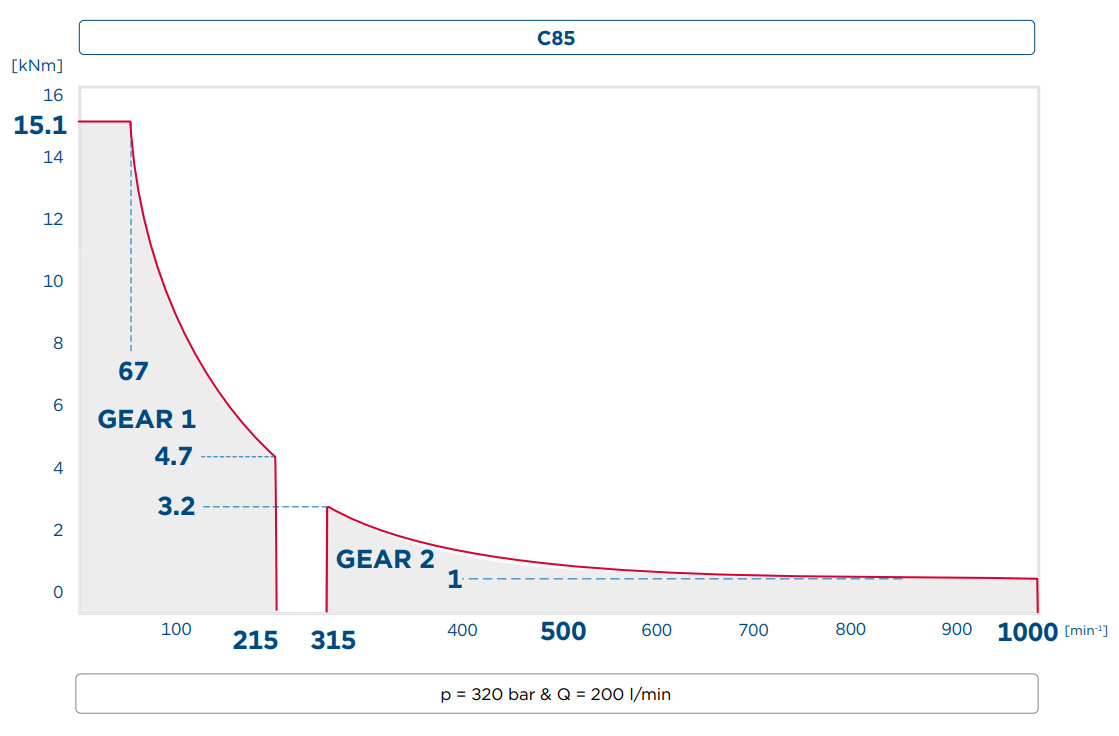

Variable C-Motor · Rotary mechanism RH15X
Option percussion unit
| Type | 4 |
|---|---|
| OPERATING PRESSURE · bar | 160 – 200 |
| OIL CAPACITY · l/min | 80 – 95 |
| SINGLE BLOW ENERGY · Nm | … 550 |
| NO. OF BLOWS · min⁻¹ | … 2800 |
Shank adapters
| H64 LH/RH |
| H64 RH/R38 LH |
| H92 RH |
Other shank adapters on request
Drive shafts
| Flange connection |
Other connections on request
Options
| Hydraulic or electric control |
| Mounting plates |
| Flushing head 2“ |
| Floating spindle |
| Percussion unit type 4 |
DIMENSIONAL DRAWING
IMPRESSIONS FROM THE FIELD
