RH1X
The RH1X is a hydraulic drilling head from the X-Series. Interchangeable attachments convert it between rotary head and drifter. The compact size suits confined sites and light carrier machines.
RH1X
OVERVIEW
| WEIGHT | 40 – 80 kg |
| TRACTION | 35 kN |
| TORQUE | up to 1060 Nm |
| ROTATION | up to 292 min⁻¹ |
| PERCUSSION FREQUENCY | up to 4000 min⁻¹ |
TECHNICAL SPECIFICATIONS
Standard motors · Rotary mechanism RH1X
| Motor type | 85 | 87 | 88 |
|---|---|---|---|
| GEAR | 1 | 1 | 1 |
| TORQUE · Nm | 540 | 860 | 1060 |
| ROTATION · min⁻¹ | 292 | 184 | 150 |
| p = 200 bar · Q = 50 l/min | |||
Percussion unit
| Type | standard | high frequency |
|---|---|---|
| OPERATING PRESSURE · bar | 140 – 180 | 140 – 180 |
| OIL CAPACITY · l/min | 25 – 40 | 45 – 55 |
| SINGLE BLOW ENERGY · Nm | … 180 | … 180 |
| NO. OF BLOWS · min⁻¹ | … 3000 | … 4000 |
Shank adapters
| R44 LH/RH & IB30, IB40 & IB52 |
| R32, R38, T38 & T45 |
Other shank adapters on request
Options
| Mounting plates |
| High frequency percussion |
| Rotation Version |
| Weight reduced version |

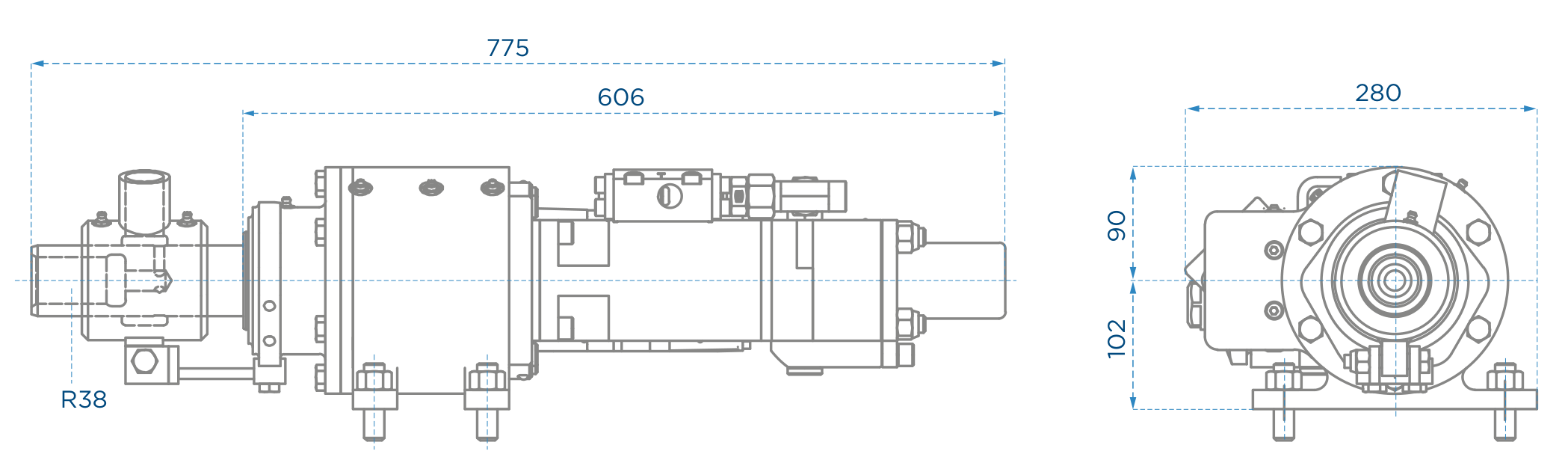

DIMENSIONAL DRAWING

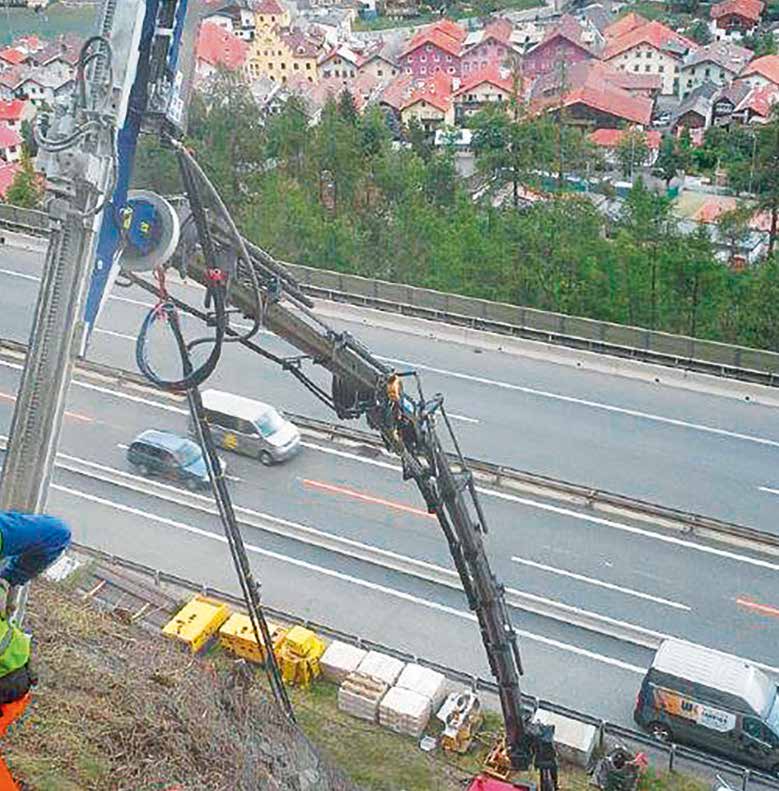

IMPRESSIONS FROM THE FIELD
