X-SERIES · SIZE MEDIUM
RH16X
The RH16X is a hydraulic drilling head from the X-Series. Interchangeable attachments convert it between rotary head and drifter. This construction method is suitable for confined spaces and lightweight carrier vehicles.
RH16X
Standard version with C-Motors
OVERVIEW
| WEIGHT | 290 – 430 kg |
| TRACTION | 180 kN |
| TORQUE | up to 16,2 kNm |
| ROTATION | up to 250 min⁻¹ |
| PERCUSSION FREQUENCY | up to 2600 min⁻¹ |
TECHNICAL SPECIFICATIONS

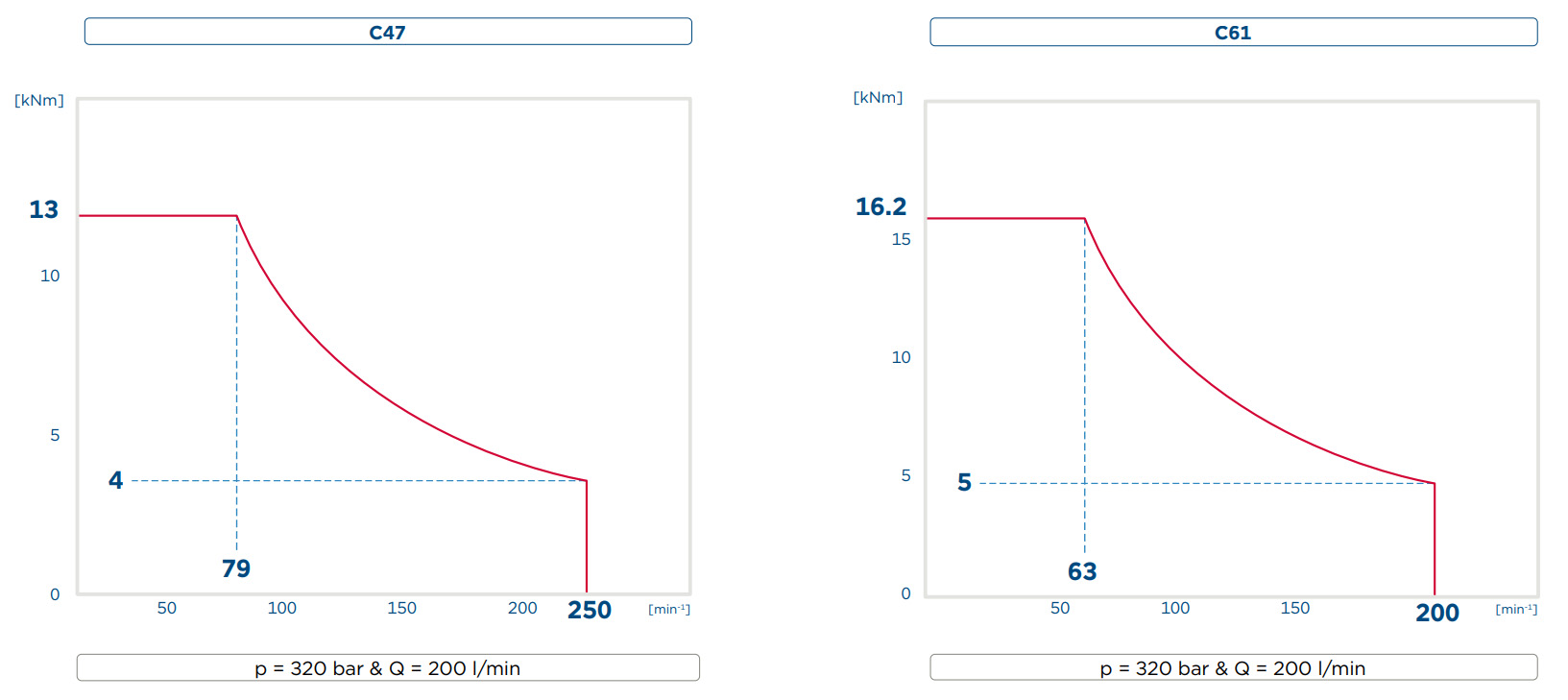

Variable C-Motors · Rotary mechanism RH16X
Percussion unit
| Type | 5 |
|---|---|
| OPERATING PRESSURE · bar | 160 – 200 |
| OIL CAPACITY · l/min | 90 – 105 |
| SINGLE BLOW ENERGY · Nm | … 720 |
| NO. OF BLOWS · min⁻¹ | … 2600 |
Shank adapters
| H90 & H92 LH/RH |
Other shank adapters on request
Drive shafts
| Flange connection |
Other connections on request
Options
| Hydraulic or electric control |
| Mounting plates |
| Flushing heads 2“ & 3“ |
| Floating spindle |
| Percussion unit type 5 |
DIMENSIONAL DRAWING

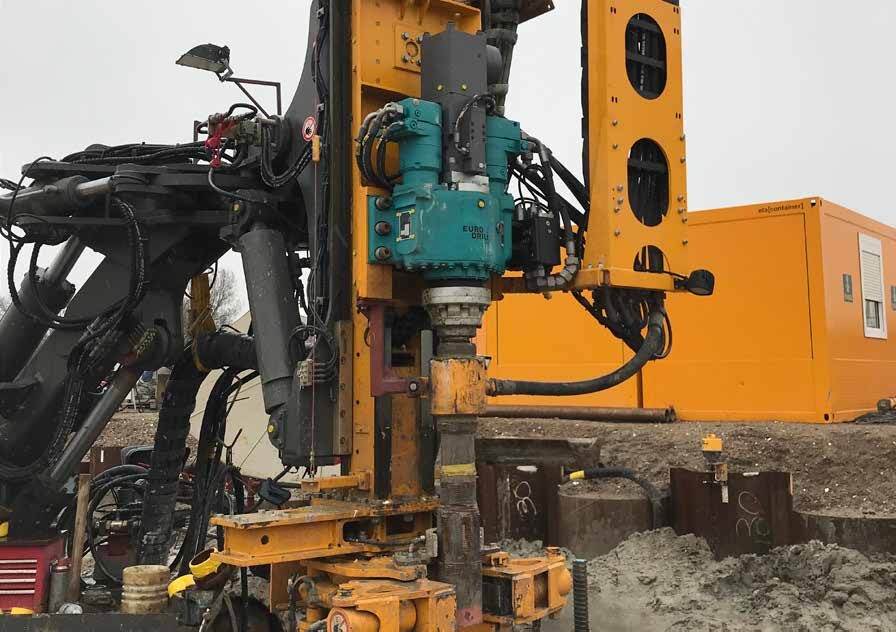

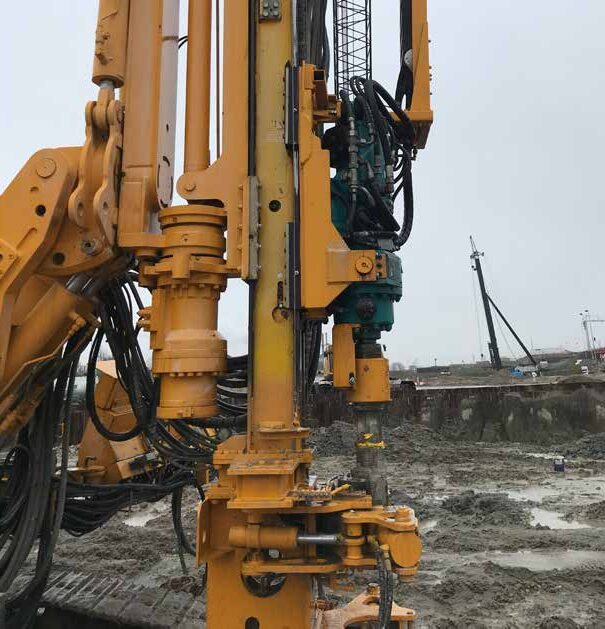

IMPRESSIONS FROM THE FIELD
