X-SERIES
RH24X
The RH24X is a hydraulic drilling head from the X-Series. Interchangeable attachments convert it between rotary head and drifter. This construction method is suitable for confined spaces and lightweight carrier vehicles.
RH24X
OVERVIEW
| WEIGHT | 350 – 540 kg |
| TRACTION | 200 kN |
| TORQUE | up to 24 kNm |
| ROTATION | up to 170 min⁻¹ |
| PERCUSSION FREQUENCY | up to 2600 min⁻¹ |
TECHNICAL SPECIFICATIONS

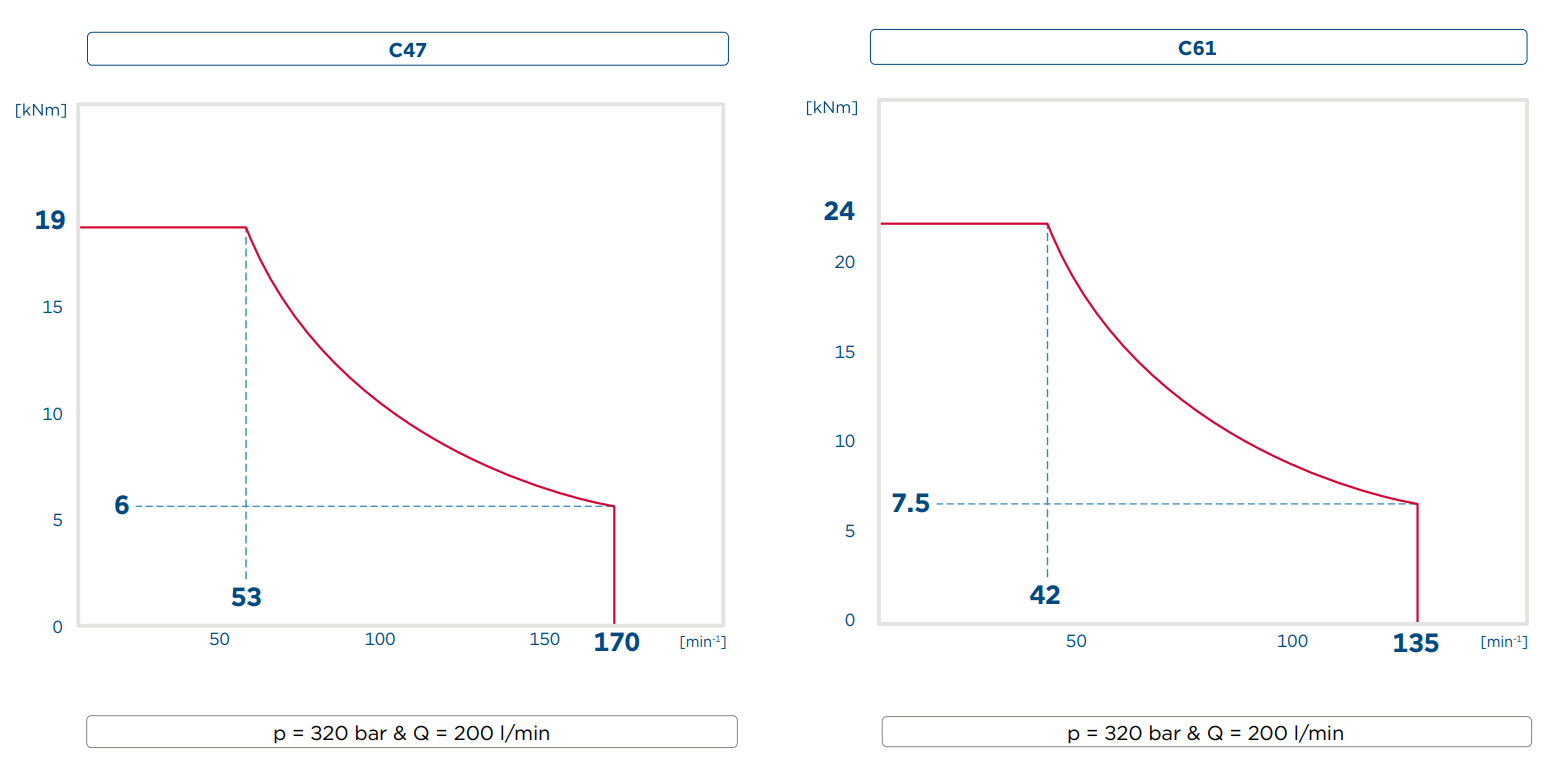

Variable C-Motors · Rotary mechanism RH24X
Percussion unit
| Type | 5 |
|---|---|
| OPERATING PRESSURE · bar | 160 – 200 |
| OIL CAPACITY · l/min | 90 – 105 |
| SINGLE BLOW ENERGY · Nm | … 720 |
| NO. OF BLOWS · min⁻¹ | … 2600 |
Shank adapters
| H90 & H92 LH / RH |
Other shank adapters on request
Drive shafts
| Flange connection |
Other connections on request
Options
| Hydraulic or electric control |
| Flushing heads 2“, 3“ & 4“ |
| Percussion unit type 5 |
| Mounting plates |
| Floating spindle |
DIMENSIONAL DRAWING
IMPRESSIONS FROM THE FIELD
