X-SERIES
RH13X
The RH13X is a hydraulic drilling head from the X-Series. Interchangeable attachments convert it between rotary head and drifter. This construction method is suitable for confined spaces and lightweight carrier vehicles.
RH13X
New model with integrated C-motors
OVERVIEW
| WEIGHT | 225 – 345 kg |
| TRACTION | 130 kN |
| TORQUE | up to 13,8 kNm |
| ROTATION | up to 235 min⁻¹ |
| PERCUSSION FREQUENCY | up to 2800 min⁻¹ |
TECHNICAL SPECIFICATIONS

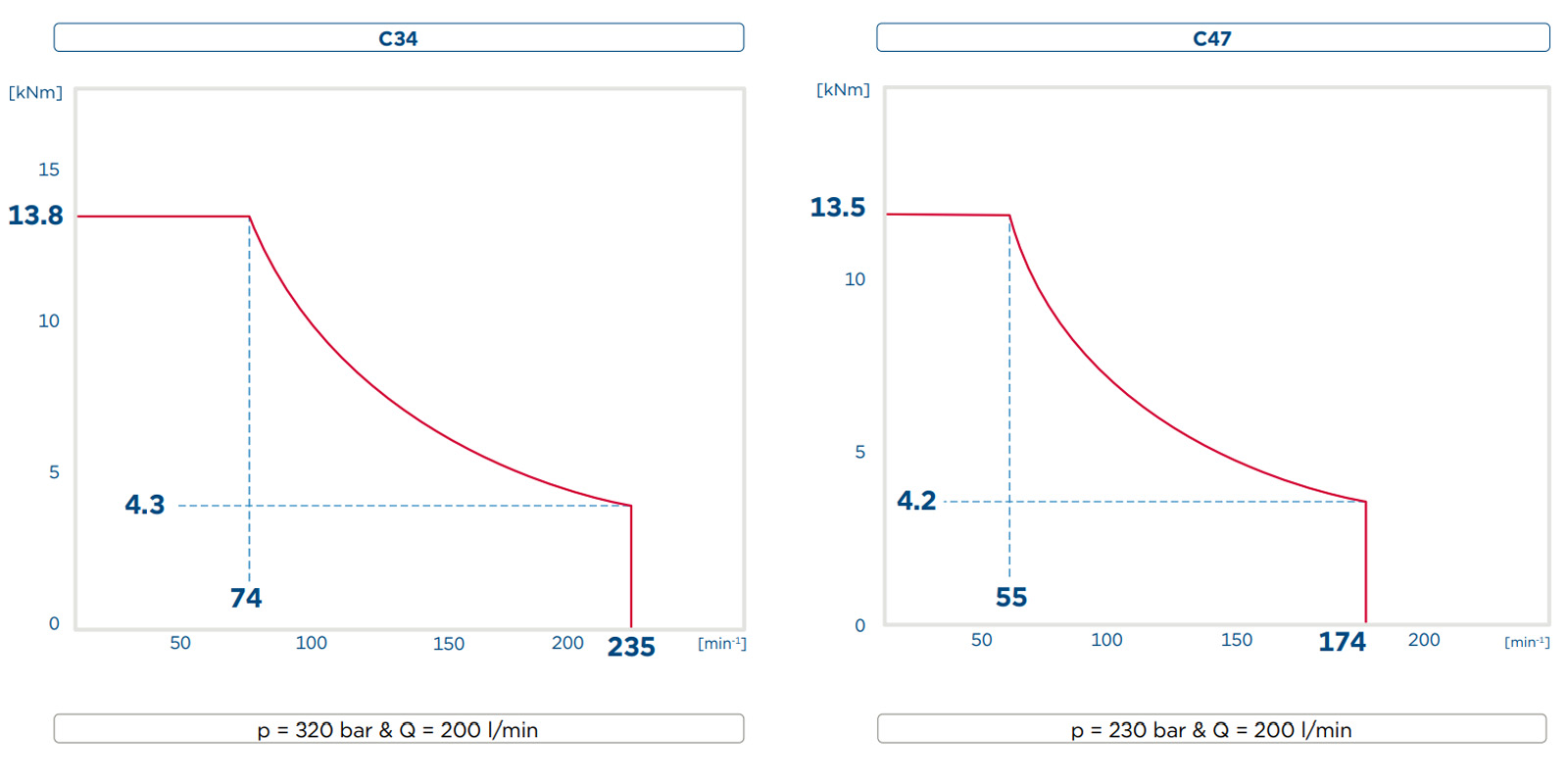

Variable C-Motors · Rotary mechanism RH13X
Option percussion unit
| Type | 4 |
|---|---|
| OPERATING PRESSURE · bar | 160 – 200 |
| OIL CAPACITY · l/min | 80 – 95 |
| SINGLE BLOW ENERGY · Nm | … 550 |
| NO. OF BLOWS · min⁻¹ | … 2800 |
Shank adapters
| R32, 38, 51, T45 & T76 |
| H55, H64 & C64 LH/RH |
Other shank adapters on request
Options
| Hydraulic, electric or manual shifting |
| Mounting plates |
| Flushing head 2“ & 3“ |
| Shock Absorber |
| Floating spindle |
| Percussion unit type 4 |
DIMENSIONAL DRAWING
