RHP SERIES

RHP30

The RHP30 is a rotary head from the RHP Series for pile rigs, built for high torque in continuous operation. Built for large rigs, large diameters and deep boreholes.

RHP30 drilling head
RHP30

Torque 328 kNm

OVERVIEW
WEIGHT2800 – 3100 kg
TRACTION650 kN
TORQUEup to 328 kNm
ROTATIONup to 45 min⁻¹
TECHNICAL SPECIFICATIONS

Options

Hydraulic or electric control
Mounting plates
Cardanic joint
Speed sensor
PERFORMANCE DIAGRAM
PERFORMANCE DIAGRAM RHP30

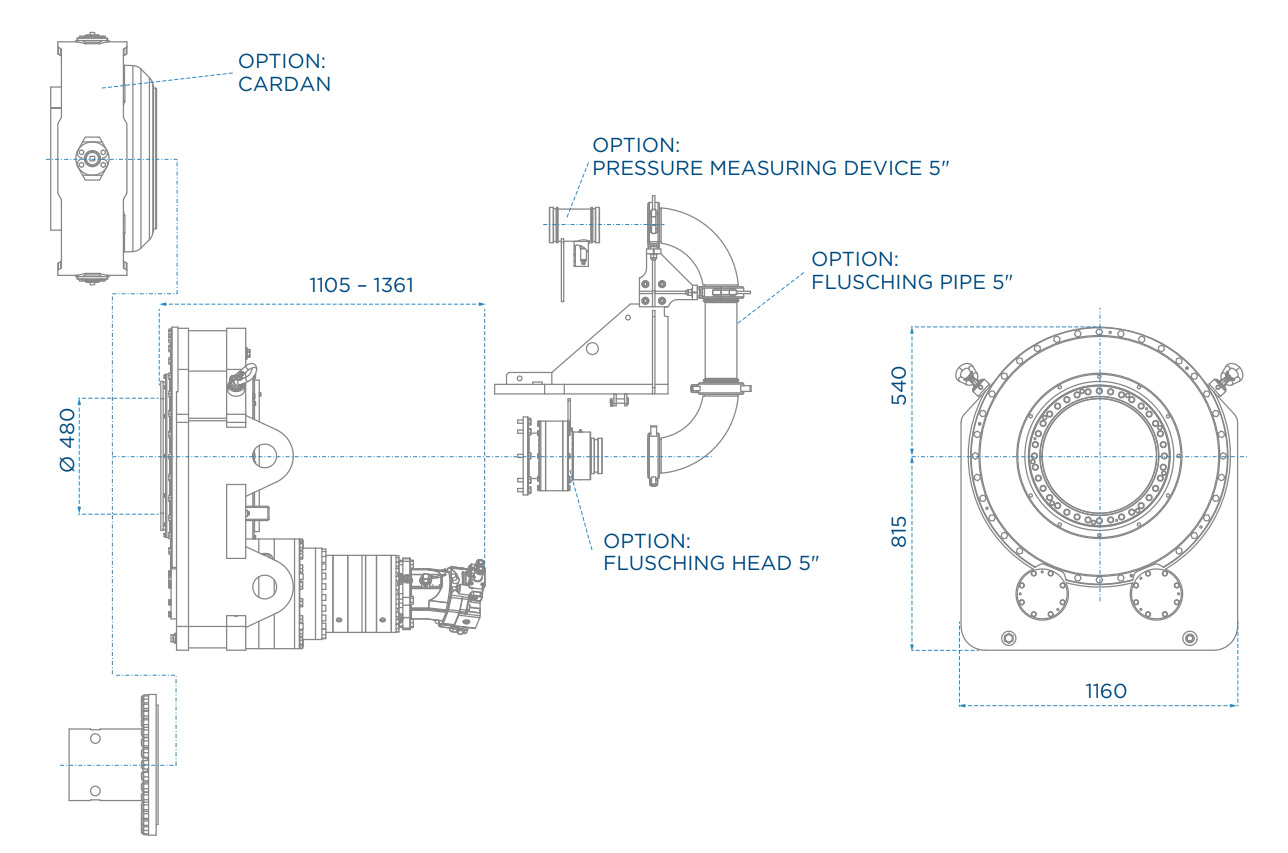

DIMENSIONAL DRAWING
DIMENSIONAL DRAWING RHP30
ALL DIMENSIONS IN MM
IMPRESSIONS FROM THE FIELD
EURODRILL RHP30
RHP30
EURODRILL RHP30
RHP30
